4-inch wide core, 90-degree corner - Fox Blocks (12 block bundle)

Insulated Concrete Forms (ICF) corner blocks make up ~15-20% of the ICF material needed in most commercial and residential projects.

Each 90-degree corner block has a patent-pending corner bracket design for maximum strength and stability. The 7/32" thick x 1-1/2" wide corner bracket connecting the inside and outside walls is unique to Fox Blocks, engineered to eliminate unintentional blow-outs during the concrete pour.

The Styrofoam Expanded Polystyrene (EPS) foam walls connect together with seven robust and full-length injection molded plastic ties.

Dimensions:

form size: 16" tall, 38" long, 22" Return, and 9.25" OD wide
80 square feet per 12 unit bundle
Internal concrete volume .84 cu. yd/ 12 unit bundle

View the entire Fox Block Catalog

Looking for a quote for your project?

Fox Blocks Project Quote Form Here> (800) 567-5358

Fox Blocks are sold in bundle quantities only.

4" Core 90 Corner Block

Product SKU: FOX-EC490
Dimensions: 16" Height 38" Long, 22" Return 9.25" OD Width
Model: 90 Corner Block - 4" Core Width

Need a written quote? Request Online
Questions? Call (800) 567-5358

R-Value = R-22
EPS foam material inhibits growth mold, mildew, and rot
Embedded Interlocking rebar saddle

ICF OVERVIEW

SHIPPING TIME

Call (800) 567-5358 for pricing and logistics questions

Fox Blocks are shipped from one of our US regional warehouses.

Will Call is available and encouraged for local pickup. Contact us to find out where the closest regional warehouse is for you.

Most orders ship out 5-8 business days following the order depending on stock levels. Lead time may vary depending on production levels and seasonality.

WAREHOUSE LOCATIONS

Regional ICF distribution warehouses

DOWNLOADS AND TECHNICAL INFO

Download Fox Blocks
Technical Info & Guidebook >Download Fox Blocks
Full Line Card >Download Technical
Performance Data >
Download Sizes Volumes
and weights >

BASEMENT PROJECT INSTALL 2MIN

90 DEGREE CORNER BLOCK ICF

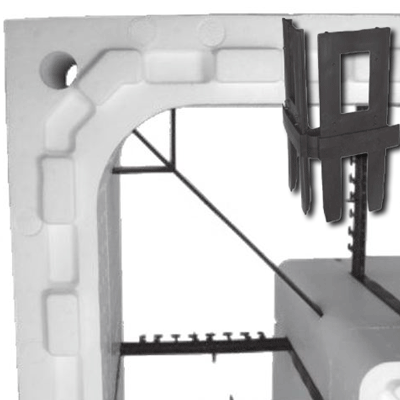

90 degree Fox Blocks Corner ICF Block

All blocks have Ties* at 8" o/c and are available in 4", 6", 8", 10" and 12" cavities.
corner blocks are reversible so when you ask for a corner you will get the correct one every time. E
Foam thickness is 2.625" on all forms.
Tie allows rebar lap splices to lay on top of each other for good flowability during concrete placement.
Ties touch vertically when stacked, eliminating form settlement.
Each corner has a 1" hole strategically placed allowing the ICF contractor the option of inserting a full height 3/4" PVC conduit to tie all courses together for extra form support

THE FOX BLOCKS ADVANTAGE

All block have 2 5/8" EPS for consistent R-Value
Blocks are reversible to encourage easy installation
Rebar spacing is consistently 16" o/c and lower truss is 8" o/c from top or bottom of upper truss
All block work with each other, example the 4" block will connect to all sizes of block
Interlocking forms minimize movement during concrete placement
Interlocking forms minimize movement during concrete placement
No adhesive required in between forms due to the precision engineering of interlocking blocks
