ICF Fox Blocks 6 inch core T-Block (6 pcs)

Sold out
$648.33
SKU FOX-TB600

Fox Blocks Insulated Concrete Forms - 6" core wide T-Block Each 6 unit bundle comes with 3 short legs and 3 long legs

T-Blocks (Short leg variety) make up 1-2% on average of the ICF wall project on a typical residential or commercial project.

T-Blocks are designed for places where there are two intersecting walls, typically where an interior and exterior wall meet. These forms reduce the amount of bracing required for a project and have the benefit of preventing concrete fill blow-outs during the project pour.

 SPECS: OD Width
Length Return Concrete Vol
Short T-Block

11.25"

44" 4.375" .105 cu. yd.
Long T-Block

11.25"

44" 12.375"
.121 cu. yd.

View the entire Fox Block Catalog

Looking for a quote for your project? Fox Blocks Project Quote Form Here>

(800) 567-5358

Fox Blocks are sold in bundle quantities only.

6" Core T-Block

  • Product SKU:  FOX-TB600
  • Dimensions: 16" Height 44" Long, 11.25" OD Width
  • Model: T-Block - 6" Core Width
  • R-Value = R-23
  • EPS foam material inhibits growth mold, mildew, and rot
  • Embedded Interlocking rebar saddle

ICF OVERVIEW

SHIPPING TIME

Call (800) 567-5358 for pricing and logistics questions

Fox Blocks are shipped from one of our US regional warehouses.

Will Call is available and encouraged for local pickup. Contact us to find out where the closest regional warehouse is for you.

Most orders ship out 5-8 business days following the order depending on stock levels.  Lead time may vary depending on production levels and seasonality.

WAREHOUSE LOCATIONS

Regional ICF distribution warehouses

90 DEGREE CORNER BLOCK ICF

90 degree Fox Blocks Corner ICF Block

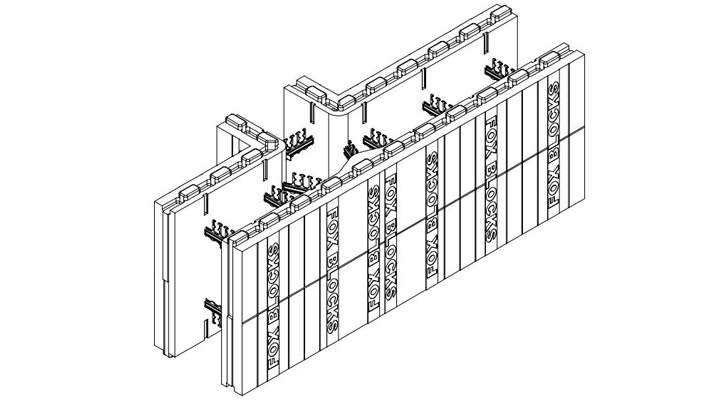

 Fox Blocks T-Block ICF

  • Forms are reversible so when you ask for a corner you will get the correct one every time.
  • Foam thickness is 2.625" on all forms.
  • Tie allows rebar lap splices to lay on top of each other for good flowability during concrete placement.
  • Ties touch vertically when stacked, eliminating form settlement.

THE FOX BLOCKS ADVANTAGE

  • All block have 2 5/8" EPS for consistent R-Value
  • Blocks are reversible to encourage easy installation
  • Rebar spacing is consistently 16" o/c and lower truss is 8" o/c from top or bottom of upper truss
  • All block work with each other, example the 4" block will connect to all sizes of block
  • Interlocking forms minimize movement during concrete placement
  • Interlocking forms minimize movement during concrete placement
  • No adhesive required in between forms due to the precision engineering of interlocking blocks
Fox Blocks HV Clip for ICF

Fox Blocks HV Clips provide horizontal and vertical stability

OTHER FOX BLOCKS PRODUCTS

Fox Blocks Insulated Concrete Form Straight wall block
Fox Blocks Insulated Concrete Form Straight wall block
Fox Blocks ICF 4
ICF blocks 4 inch core straight (12 pcs) Fox Blocks
ICF blocks 4 inch core straight (12 pcs) Fox Blocks
Fox Blocks ICF foundation

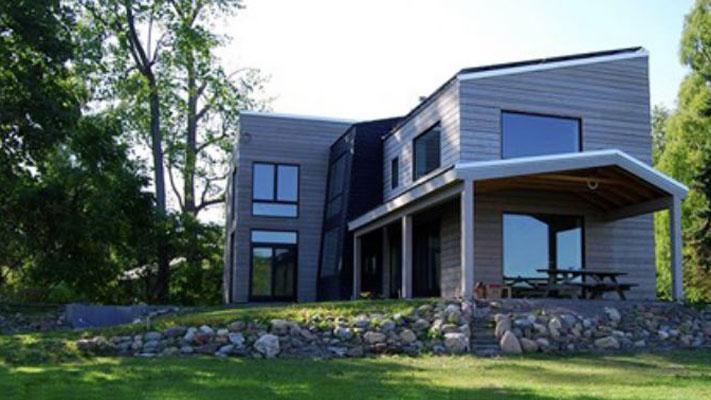

Fox Blocks Residential home

ICF blocks 4 inch core straight (12 pcs) Fox Blocks

$712.98
Fox Blocks Insulated Concrete Form Straight wall block
Fox Blocks Insulated Concrete Form Straight wall block
Fox Blocks ICF 6

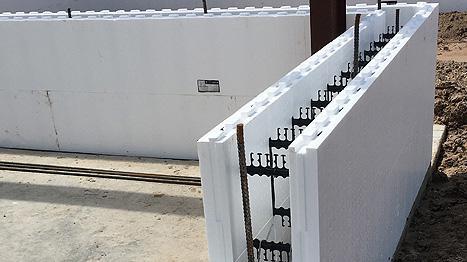

ICF blocks wall fox blocks

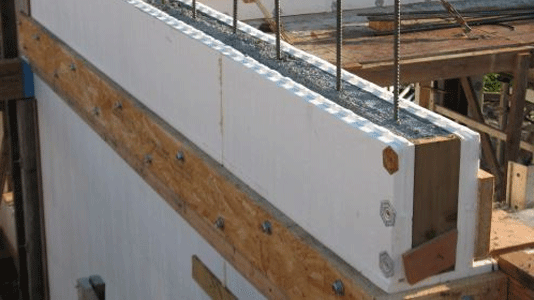

insulated concrete forms home
