Phenoline 385/187 VOC High-Solids Epoxy Phenolic Tank Lining

Phenoline 385/187 VOC High-Solids Epoxy Phenolic Tank Lining

by Carboline
$288.55 - $1,289.40
$288.55
$288.55 - $1,289.40
$288.55

Phenoline 385/187 VOC High-Solids Epoxy Phenolic Tank Lining by Carboline is a high-solids, polyamine cured, modified epoxy phenolic lining engineered for exceptional chemical resistance in the most demanding immersion and industrial environments. Self-priming and applicator friendly, it provides outstanding long-term protection on steel and concrete substrates across a wide range of services — from crude oil storage to food and beverage processing.

This product delivers a powerful combination of chemical resistance, temperature performance, and regulatory compliance, making it a go-to solution for tank linings, under-insulation applications, and process equipment protection.

Find the entire collection of Carboline Products Here >

Key Benefits:

Exceptional Chemical Resistance: Phenoline 385/187 VOC provides broad resistance to crude oil, petroleum products, Jet A fuel, aromatic solvents, acids, caustics, and a wide array of industrial chemicals — backed by extensive immersion test data to assure real-world performance.
Outstanding Temperature Performance: Rated for continuous dry service to 400°F (204°C) and non-continuous to 450°F (232°C), with the same continuous rating under insulation — making it ideal for high-temperature pipework, vessels, and CUI (corrosion under insulation) applications.
FDA & Regulatory Compliance: Meets FDA requirements under 21 CFR 175.300 for direct aqueous food contact, passes the EI 1541 jet fuel gum test for aviation fuel systems, and complies with MIL-PRF-4556F testing — giving specifiers confidence across food, beverage, defense, and aviation applications.
High-Solids, Low-VOC Formula: With 85% solids by volume and a VOC content of only 1.00 lbs/gal (119 g/l) as supplied, this product complies with current AIM regulations, reduces the number of containers to open and dispose of, and saves labor — all while minimizing environmental impact.
Abrasion & Thermal Shock Resistance: Superior mechanical durability and outstanding resistance to wet/dry cycling at elevated temperatures make this lining an ideal choice for tanks and equipment subject to thermal fluctuation and physical wear.

Common Industry Applications:

  • Oil & Gas Refining and Storage: Proven resistance to crude oil (up to 180°F/82°C), refined fuels, kerosene, and aromatic solvents for storage tanks, process piping, and terminals.
  • Chemical Processing Facilities: Broad chemical resistance data supports use across a wide range of aggressive process chemistries, acids, and caustics.
  • Food, Beverage & Water: FDA 21 CFR 175.300 compliant for aqueous food contact; recommended for demineralized water, tap water, corn syrup, beer, wine, vegetable oils, and beverage storage tanks.
  • Aviation & Fuel Handling: Passes EI 1541 jet fuel gum test, making it suitable for aviation fuel systems and fuel oil/biodiesel storage tanks.
  • Power Industry & Under-Insulation: Exceptional performance in wet/dry cycling and continuous service to 400°F (204°C) under insulation, extending asset life in high-temperature pipework and vessels.

PHENOLINE 385/187 VOC IS AVAILABLE IN 1-GALLON AND 5-GALLON KITS.
SOLD AS A 2-PART SYSTEM — PART A & HI PERFORMANCE CATALYST (PART B).

Product Type: High-Solids Polyamine Cured Modified Epoxy Phenolic

Phenoline 385/187 VOC has a Semi-Gloss finish

Applied via Conventional Spray, Airless Spray, or Brush

Mixing: 2:1 Ratio Parts A to B

Available Colors: Gray (0700), White (0800)

Roller not recommended for tank lining applications

Contact our customer support today to discuss your project:

(800) 567-5358
Size: 1-gallon
Color: Gray (0700)
Coverage Calculator

Compatible Thinners

Thinner Use With Max Rate
Thinner #2 Spray · Brush · Stripe coat (50% min) 20% (25 oz/gal)
Thinner 76 Spray · Non-photochemically reactive option 20% (25 oz/gal)
Thinner 225 E Spray · Lowest VOC option (67 g/l) 13 oz/gal

⚠ Only Carboline-supplied thinners are approved. Use of other thinners may void product warranty.
Thinner #2 is the primary recommended thinner for all methods. Thinner 76 and 225E are alternate options — contact us for availability.

Recommended Coating Systems

Standard Two-Coat Tank Lining
First Coat Phenoline 385/187 VOC 4–6 mils DFT · self-priming
→
Second Coat Phenoline 385/187 VOC 4–6 mils DFT · max 18 mils total
Three-Coat System — Blast Hold Primer + Lining
Blast-Hold Primer Carboguard 60 4–6 mils DFT · holds blast profile
→
First Lining Coat Phenoline 385/187 VOC 4–6 mils DFT
→
Second Lining Coat Phenoline 385/187 VOC 4–6 mils DFT
Exterior Tank Shell / Under-Insulation System
Lining (CUI) Phenoline 385/187 VOC 2 coats · 400°F continuous under insulation
→
Exterior Finish Carbothane 134 HG 2–3 mils DFT · UV-stable polyurethane
Food, Beverage & Water Tank Lining
First Coat Phenoline 385/187 VOC 4–6 mils DFT · FDA 21 CFR 175.300
→
Second Coat Phenoline 385/187 VOC 4–6 mils DFT · force cure required for food-grade

Frequently Purchased Together

Carboline Thinner No. 2 — primary thinner for Phenoline 385/187 VOC
Carboline Thinner No. 2
Primary thinner for Phenoline 385/187 VOC. Up to 20% for spray; 50% min for stripe coat. Also used for cleanup.
$129.87 / gal
Shop Now
Carboline Thinner No. 33
Carboline Thinner No. 33
Alternate compatible thinner. Suitable for brush application and cleanup in hot or windy conditions.
$137.22 / gal
Shop Now

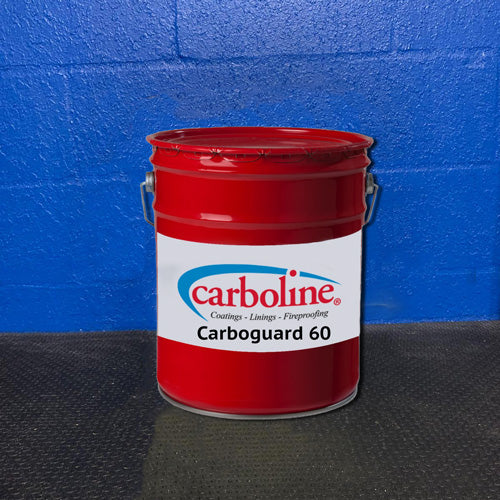

Carboguard 60 Epoxy Polyamide — blast-hold primer for tank lining systems
Carboguard 60
High-solids epoxy polyamide. Used as a blast-hold primer or intermediate coat in three-coat tank lining systems with Phenoline 385.
Call (800) 567-5358
Shop Now
Carboguard 893 Corrosion Resistant Primer
Carboguard 893 Primer
Corrosion-resistant epoxy primer for steel. Ideal first coat in aggressive atmospheric systems before Phenoline lining coats.
$439.48 / kit
Shop Now

Product Specs — Phenoline® 385/187 VOC

Phenoline® 385/187 VOC — High-Solids Epoxy Phenolic Tank Lining by Carboline.
Polyamine cured, modified epoxy phenolic engineered for exceptional long-term chemical resistance in immersion and industrial environments. FDA compliant, self-priming, and rated to 400°F (204°C) continuous.

✔ Low VOC — compliant with current AIM regulations  •  ✔ FDA 21 CFR 175.300 — direct aqueous food contact  •  ✔ Passes EI 1541 jet fuel gum test  •  ✔ Complies with MIL-PRF-4556F

✏️ Need a project quote? Request Online

📞 Questions? Call (800) 567-5358 — Mon–Fri 8AM–5PM PST

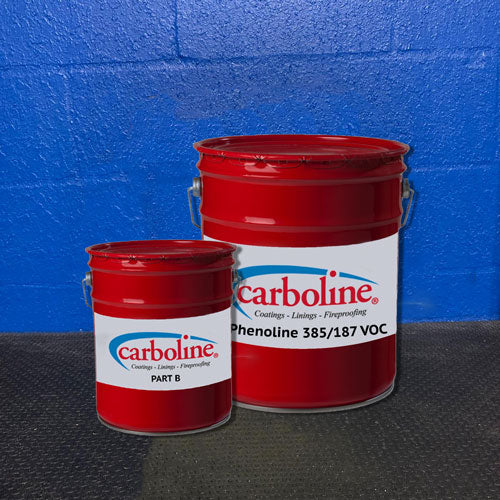

Phenoline® 385/187 VOC by Carboline

Phenoline 385/187 VOC high-solids epoxy phenolic tank lining by Carboline — chemical resistant coating for steel and concrete
Phenoline® 385/187 VOC — High-Solids Epoxy Phenolic Tank Lining

Shipping Map — Carboline Delivery Timing

Carboline US regional warehouse shipping map showing typical 2, 3, and 4-day delivery transit zones 🔍 Click to enlarge
Typical transit times vary by destination zone. Click map to enlarge.

Shipping Time

Call (800) 567-5358 for pricing and logistics questions.

Carboline orders ship from regional warehouses nearest to your location, with full product stock maintained at each facility.

Most orders ship within 2–3 business days of order placement. Transit times shown on the map are typical but not guaranteed.

Shelf Life: Part A — 12 months at 75°F (24°C). Hi Performance Catalyst — 6 months at 75°F (24°C). Store indoors in original unopened containers.

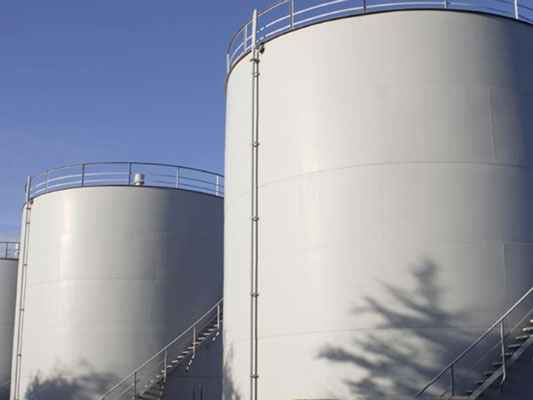

Phenoline 385/187 VOC applied as a tank lining for storage
Phenoline 385/187 VOC applied as a tank lining for storage.

Phenoline 385/187 VOC Coverage Rates

Recommended DFT: 4–6 mils per coat. Two coats required for optimum performance. A third coat may be applied for additional thickness or service life. Total system must not exceed 18 mils (457 microns) DFT.

DFT per Coat Imperial Metric Typical Use
1.0 mil (25 microns) 1,363 ft²/gal 33.5 m²/l Theoretical reference (1 mil)
4.0 mils (100 microns) 341 ft²/gal 8.4 m²/l Standard tank lining — minimum per coat
6.0 mils (150 microns) 227 ft²/gal 5.6 m²/l Maximum per coat; immersion / aggressive service

Allow for loss in mixing and application. Solids by volume: 85% ± 2%.
Source: Carboline Phenoline 385/187 VOC Product Data Sheet, March 2025

Mixing Instructions

Mix Ratio: 2:1 by volume (Part A to Hi Performance Catalyst / Part B)

Power mix Part A separately. Power mix Part B (Hi Performance Catalyst) separately. Then combine and power mix together until fully uniform. DO NOT MIX PARTIAL KITS.

Sweat-in time: Allow a 15-minute sweat-in period after combining parts before application.

Pot life: 1¼ hours at 75°F (24°C) · 2 hours at 60°F (15°C). Pot life shortens at higher temperatures and ends when the coating loses body and begins to sag.

Thinning by Application Method

Thinning is required to properly atomize the mixed material for spray application. Use only Carboline-supplied thinners — use of unauthorized thinners may adversely affect product performance and void product warranty.

Application Method Max Thinning Recommended Thinner(s)
Conventional Spray Up to 20% (25 oz/gal) Thinner 2, Thinner 76, or Thinner 225 E
Airless Spray Up to 20% (25 oz/gal) Thinner 2, Thinner 76, or Thinner 225 E
Brush As needed — "flow" the coating on Thinner 2, Thinner 76, or Thinner 225 E
Roller Not recommended for tank lining Use short-nap synthetic roller with phenolic core for non-tank applications only
Stripe / Weld Brush Pass Minimum 50% by volume Thinner 2, Thinner 76, or Thinner 225 E

Note: Prior to spray application, stripe brush all weld attachments and surface irregularities by thinning a minimum of 50% by volume.

Carboline Phenoline 385/187 VOC mixing procedure — power mixing Part A and Hi Performance Catalyst separately before combining at 2:1 ratio
Power mix each part separately, then combine. 2:1 ratio. Allow 15-min sweat-in.

Application Equipment Guidelines

Method Equipment Specification
Conventional Spray Pressure pot with dual regulators · 3/8" I.D. minimum material hose · .070" I.D. fluid tip · Appropriate air cap · ~50 psi at gun · 10–20 lbs. pot pressure
Airless Spray Pump ratio 30:1 min · 2.5 GPM output min · 3/8" I.D. material hose · Tip size 0.017"–0.021" · Output PSI 1,500–2,300 · 60-mesh filter · PTFE packings recommended
Brush Medium bristle brush. Apply light crisscross coat, allow ~5 min, then apply heavy crisscross coat. "Flow" the coating on rather than brushing out. Yields ~2.5–3.0 mils DFT per coat.
Roller Short-nap synthetic roller with phenolic core. Not recommended for tank lining applications except when striping welds.

Compatible Substrates & Surface Preparation

Remove all oil or grease from the surface per SSPC-SP1 before any surface preparation. See the full product data sheet for complete guidelines.

Substrate Surface Preparation Requirement
Steel SSPC-SP10 (Near White Blast). Surface profile: dense angular 2.0–3.5 mils (50–88 µ).
Concrete / CMU (Immersion) Must be cured 28 days at 75°F (24°C) and 50% RH or equivalent. Prepare per ASTM D4258 (cleaning) and ASTM D4259 (abrading). Voids may require surfacing.
Non-Ferrous Metals SSPC-SP16 or SSPC-SP17 as relevant. Anchor profile: 1.5 mils (37.5 µ) minimum. Remove all imbedded iron, chlorides, and contaminants that would interfere with performance.

Application Conditions

Condition Material Surface Ambient Humidity
Minimum 50°F (10°C) 50°F (10°C) 50°F (10°C) 0%
Maximum 90°F (32°C) 125°F (52°C) 110°F (43°C) 80%

Substrate temperature must be above the dew point at all times. Condensation on prepared steel can cause flash rusting and interfere with adhesion. Special application techniques may be required outside normal conditions.

Curing Schedule

Times based on 4.0–6.0 mil (100–150 µ) DFT. Excessive humidity or condensation during curing can cause discoloration and surface haze — remove any haze by water washing before recoating.

Surface Temp. Dry to Recoat Final Cure (Immersion) Maximum Recoat Time
50°F (10°C) 36 Hours 14 Days 30 Days
60°F (16°C) 24 Hours 10 Days 21 Days
75°F (24°C) 12 Hours 7 Days 14 Days
90°F (32°C) 6 Hours 5 Days 7 Days
⚠ Food-grade exposures require force curing at 225°F (107°C) for four hours. Raise temperature 30°F for every 30 minutes until temperature is reached.  •  If maximum recoat times are exceeded, abrade surface by sweep blasting or sanding before applying additional coats.

Limitations & Important Notes

  • Do not mix partial kits — always use complete kits to maintain the correct 2:1 ratio.
  • Roller is not recommended for tank lining applications except when striping welds.
  • When used as a tank lining or in enclosed areas, thorough air circulation must be maintained during and after application until fully cured. Use MSHA/NIOSH approved supplied-air respirator if vapor levels cannot be monitored.
  • This product contains flammable solvents. Keep away from sparks and open flames. All electrical equipment must be grounded per the National Electric Code. Use non-ferrous tools and conductive, non-sparking shoes in explosion-hazard areas.
  • Maximum system DFT must not exceed 18 mils (457 microns) total.
  • For immersion service temperature resistance, consult Carboline Technical Service — resistance depends on the specific exposure.

Frequently Asked Questions — Phenoline 385/187 VOC

What is the coverage rate for Phenoline 385/187 VOC?
Phenoline 385/187 VOC covers 341 ft²/gal at 4.0 mils DFT and 227 ft²/gal at 6.0 mils DFT (theoretical, 85% solids by volume). Two coats are required for optimum performance, with a total system maximum of 18 mils DFT. Allow for loss in mixing and application.
What is the mix ratio and pot life?
Mix ratio is 2:1 by volume (Part A to Hi Performance Catalyst / Part B). After combining, allow a 15-minute sweat-in period before application. Pot life is 1¼ hours at 75°F (24°C) and 2 hours at 60°F (15°C) — shorter at higher temperatures. Do not mix partial kits.
Is Phenoline 385/187 VOC FDA compliant for food and beverage use?
Yes — Phenoline 385/187 VOC meets FDA 21 CFR 175.300 requirements for direct aqueous food contact. It is suitable for food and beverage storage tanks, processing facilities, and beverage storage. Note: food-grade exposures require force curing at 225°F (107°C) for four hours.
What temperature can Phenoline 385/187 VOC withstand?
Dry service: 400°F (204°C) continuous and 450°F (232°C) non-continuous. Under insulation: 400°F (204°C) continuous and 450°F (232°C) non-continuous. Immersion temperature resistance depends on the specific exposure — consult Carboline Technical Service for guidance.
What chemicals is Phenoline 385/187 VOC resistant to?
Phenoline 385/187 VOC has broad chemical resistance including crude oil (to 180°F), diesel oil, kerosene (to 250°F), aviation gas, xylene, toluene, ferric chloride 50%, sodium hydroxide 50%, corn syrup, vegetable and corn oils, demineralized and tap water, beer, wine, and many more. See the full immersion data table in the product flyer or consult Carboline Technical Service for specific chemical confirmation.
What surface preparation is required for steel?
Steel must be prepared to SSPC-SP10 (Near White Blast) with a dense angular surface profile of 2.0–3.5 mils (50–88 µ). Remove all oil and grease per SSPC-SP1 before blasting. Substrate temperature must be above the dew point to prevent flash rusting.
