Name: ICF Fox Blocks 8 inch core T-Block (6 pcs)
Brand: Material Warehouse
SKU: FOX-TB800
Price: 668.52 USD
Availability: OutOfStock

ICF Fox Blocks 8 inch core T-Block (6 pcs)

by Material Warehouse

Sold out

$668.52 - $668.52

$668.52

$668.52 - $668.52

$668.52

Fox Blocks Insulated Concrete Forms - 8" core wide T-Block Each 6 unit bundle comes with 3 short legs and 3 long legs

These T-Blocks (Short leg) make up 1-2% on average of the ICF wall project on a typical residential or commercial project.

T-Blocks are designed for places where there are two intersecting walls, typically where an interior and exterior wall meet. These forms reduce the amount of bracing required for a project and have the benefit of preventing concrete fill blow-outs during the project pour.

SPECS:	OD Width	Length	Return	Concrete Vol
Short T-Block	13.25"	44"	4.75"	.141 cu. yd.
Long T-Block	13.25"	44"	12.375"	.152 cu. yd.

View the entire Fox Block Catalog

Looking for a quote for your project? Fox Blocks Project Quote Form Here>

(800) 567-5358

Fox Blocks are sold in bundle quantities only.

8" Core T-Block

Product SKU: FOX-TB800
Dimensions: 16" Height 44" Long, 13.25" OD Width
Model: T-Block - 6" Core Width

Need a written quote? Request Online
Questions? Call (800) 567-5358

R-Value = R-23
EPS foam material inhibits growth mold, mildew, and rot
Embedded Interlocking rebar saddle

ICF OVERVIEW

SHIPPING TIME

Call (800) 567-5358 for pricing and logistics questions

Fox Blocks are shipped from one of our US regional warehouses.

Will Call is available and encouraged for local pickup. Contact us to find out where the closest regional warehouse is for you.

Most orders ship out 5-8 business days following the order depending on stock levels. Lead time may vary depending on production levels and seasonality.

WAREHOUSE LOCATIONS

Regional ICF distribution warehouses

DOWNLOADS AND TECHNICAL INFO

Download Fox Blocks
Technical Info & Guidebook >Download Fox Blocks
Full Line Card >Download Technical
Performance Data >
Download Sizes Volumes
and weights >

BASEMENT PROJECT INSTALL 2MIN

90 DEGREE CORNER BLOCK ICF

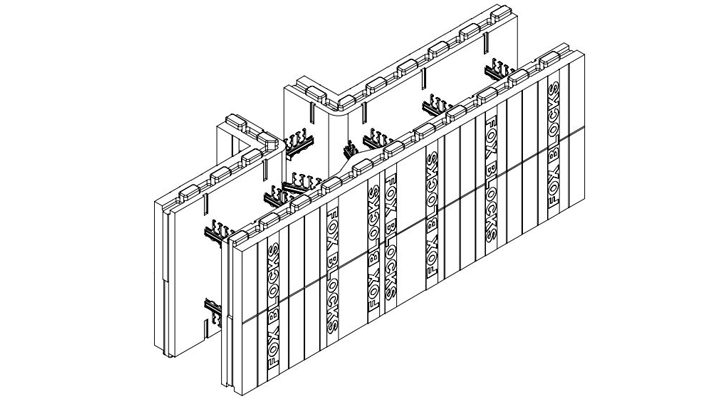

Fox Blocks T-Block ICF

Forms are reversible so when you ask for a corner you will get the correct one every time.
Foam thickness is 2.625" on all forms.
Tie allows rebar lap splices to lay on top of each other for good flowability during concrete placement.
Ties touch vertically when stacked, eliminating form settlement.

THE FOX BLOCKS ADVANTAGE

All block have 2 5/8" EPS for consistent R-Value
Blocks are reversible to encourage easy installation
Rebar spacing is consistently 16" o/c and lower truss is 8" o/c from top or bottom of upper truss
All block work with each other, example the 4" block will connect to all sizes of block
Interlocking forms minimize movement during concrete placement
Interlocking forms minimize movement during concrete placement
No adhesive required in between forms due to the precision engineering of interlocking blocks
